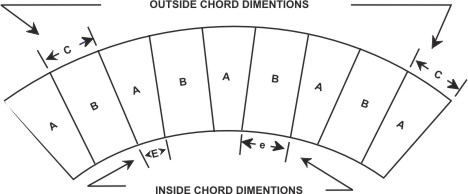

Combination To Form a Ring  With Two Size of Brick






F o r m u l a


   When Both Brick A and B are Radial and Outside Chords are equal (C =C) but Inside
      Chord are Unique.
  (1)   S = π D
         C
  (2)   Y = d - S E
          e - E

   When Brick B is a straight brick and Brick A is Redial, C = E
  (3)   x = 2π T
        C - E
  (4)   y = πD - xC
              c

   When Brick A and B are Radial and Both Chord Dimension of A Differ From Those of B
  (5)   Cx + cy = πD   (6)   Ex + ey = πd

   When Calculating A Series of Combination The Following Formulas Are Convenient
  (7)   X = J (g - D)
         g - G
  (8)   Y = J (g - D)
         g - G



K e y   T o   S y m b o l

A   A radial brick used with a straight or another radial B, which turns a larger
  circle than A.
B   A straight brick or a radial brick which turns a larger circle than A, both a
  and B forming the same thickness of arch T.
T   The thickness of the arch formed by A and B.
C   The outside chord of brick A.
c   The outside chord of brick B.
E   The inside chord of brick A.
e   The inside chord of brick B.
D   Given outside diameter of desired ring.
d   Given inside diameter of desired ring.
G   Outside diameter of ring formed by radial brick A alone.
g   Outside diameter of ring formed by brick B alone if it is a radial.
J   Number of brick A to form a ring of outside diameter G.
j   Number of brick B to form a ring of outside diameter g.
x   Number of pieces of brick A, used with brick B to form a ring of outside
  diameter D
y   Number of pieces of brick B, used with brick A to form a ring of outside
  diameter D.
S   Total number of pieces of brick A and brick B to form a ring of outside
  diameter D.
